Product Summary

The AD7520SD is a low cost, monolithic 10-bit multiplying digitial-to-analog converter packaged in a 16-pin DIP. The AD7520SD uses advanced CMOS and thin film technologies providing up to 10-bit accuaracy with TTL/DTL/CMOS compatibility. The AD7520SD operates from +5V to +15V supply dissipates only 20mW, including the ladder network.

Parametrics

AD7520SD absolute maximum ratings: (1)VDD to GND:17v; (2)VREF to GND:±25V; (3)digital input voltage range: VDD to GND; (4)output voltage:-100mV to VDD; (5)power dissipation:450mW; (6)operating temperature:0 to 70℃; (7)storage temperature:-65 to +150℃.

Features

AD7520SD features: (1)10 bit resolution; (2)linearity:8.9.10 bit; (3)nonlinearity tempco:2ppm of FSR/℃; (4)low power dissipation:20mW; (5)current settling time:500ns.

Diagrams

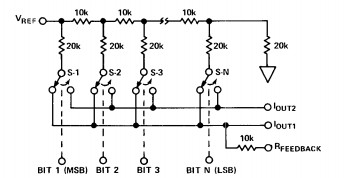

AD7520SD circuit diagram
