Product Summary

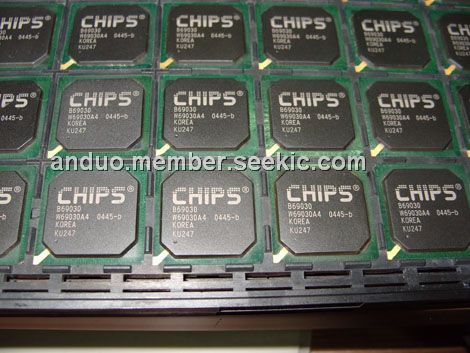

The B69030 Dual HiQVideo Accelerator is with 4MB Embedded Memory.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: -0.5 to 5.0 V; (2)Input Voltage: -0.5 to 5.5 V; (3)Storage Temperature: -40 to 125 ℃.

Features

Features: (1)Embedded SDRAM memory: 4 MB embedded memory, 83 MHz SDRAM operation; (2)Dual Independent Display: Different or same display image CRT/TV and Flat Panel; (3)Independent display timing and resolution for CRT/TV and Flat Panel; (4)Single View Display Mode: up to 1600x1200 64K color @ 60 Hz; (5)Dual Independent Display Mode: up to 1280x1024 256 color @ 60 Hz.

Diagrams
