CA3020A

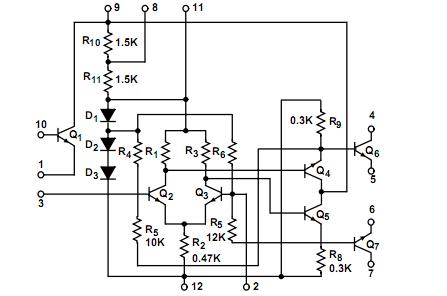

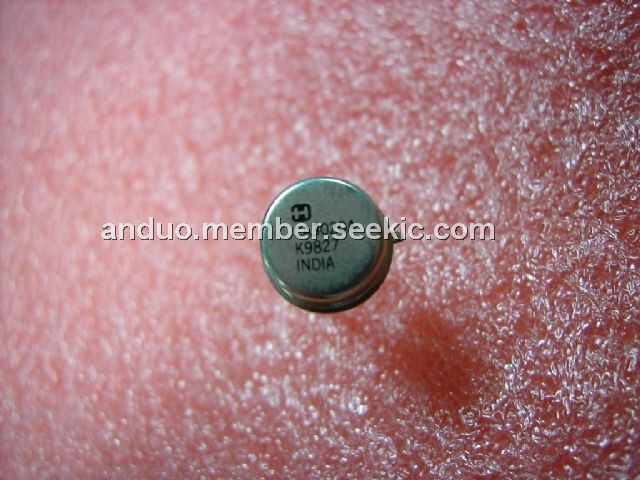

8MHz Power Amplifier, 3V to 12V, TO, 75dB

Rated 5 Rating 5 | reviews | Write a review

Price:: US $28.88~29.76 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $28.88~29.76

PartNumber:: CA3020A

Brand:: Harris Corporation - Harris | Pack: TO | D/C: 98+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Anna's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-06

From Other Seller

Part Number:CA3020A
US $28.88 - 29.76
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The CA3020A is an integrated-circuit, multistage, multipurpose, wide-band power amplifier on a single monolithic silicon chip. The applications of the CA3020A are AF Power Amplifiers For Portable and Fixed Sound and Communications Systems, Servo-Control Amplifiers, Wide-Band Linear Mixers, Video Power Amplifiers, Transmission-Line Driver Amplifiers (Balanced and Unbalanced), Fan-In and Fan-Out Amplifiers For Computer Logic Circuits, Lamp-Control Amplifiers, Motor-Control Amplifiers, Power Multivibrators, Power Switches.

Parametrics

CA3020A absolute maximum ratings: (1)Maximum Pin 9 Supply Voltage, VCC1:12V; (2)Maximum Pin 9 Supply Current, ICC1:20mA; (3)Maximum Pin 11 Sink Current, I11:20mA; (4)Output Voltage, V4 and V7:18V; (5)Output Current, IO:300mA; (6)Input Voltage Range, V2, V3:-2V to 2V; (7)Maximum Input Voltage, V10 (Ref to Pin 1):-3V; (8)Maximum Source Current, V1:1mA.

Features

CA3020A features: (1)High Power Output Class B Amplifier:1.0W (Typ) at VCC = 12V; (2)Wide Frequency Range:Up to 8MHz with Resistive Loads; (3)High Power Gain:75dB (Typ); (4)Single Power Supply For Class B Operation With Transformer:3V to 12V; (5)Built-In Temperature-Tracking Voltage Regulator Provides Stable Operation Over -55 to 125℃ Temperature Range.
