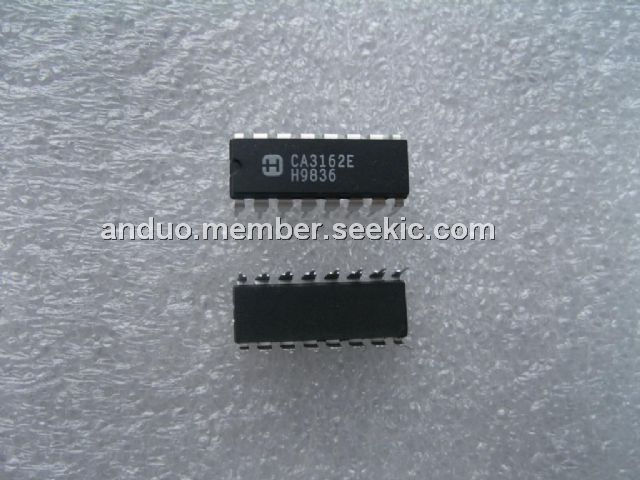

Product Summary

The CA3162E is an A/D converter for 3-digit display. The CA3162E I2L monolithic A/D converter provides a 3 digit multiplexed BCD output. It is used with the CA3162E BCD-to-Seven-Segment Decoder/Driver and a minimum of external parts to implement a complete 3-digit display. The CA3162AE is identical to the CA3162E except for an extended operating temperature range. The CA3161E is described in the Display Drivers section of this data book.

Parametrics

CA3162E absolute maximum ratings: (1)DC Supply Voltage: +7V; (2)Input Voltage (Pin 10 or 11 to Ground): ±15V; (3)Temperature Range: 0 to 75℃; (4)Maximum Junction Temperature: 150℃; (5)Maximum Storage Temperature Range: -65℃ to 150℃; (6)Maximum Lead Temperature (Soldering 10s): 300℃.

Features

CA3162E features: (1)Dual Slope A/D Conversion; (2)Multiplexed BCD Display; (3)Ultra Stable Internal Band Gap Voltage Reference; (4)Capable of Reading 99mV Below Ground with Single Supply; (5)Differential Input; (6)Internal Timing - No External Clock Required; (7)Choice of Low Speed (4Hz) or High Speed (96Hz) Conversion Rate; (8)Hold nhibits Conversion but Maintains Delay.

Diagrams

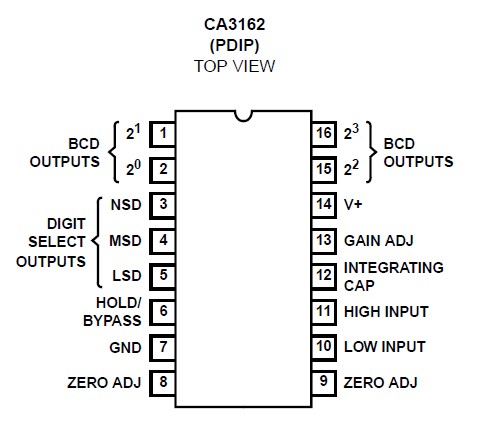

CA3162E block diagram
