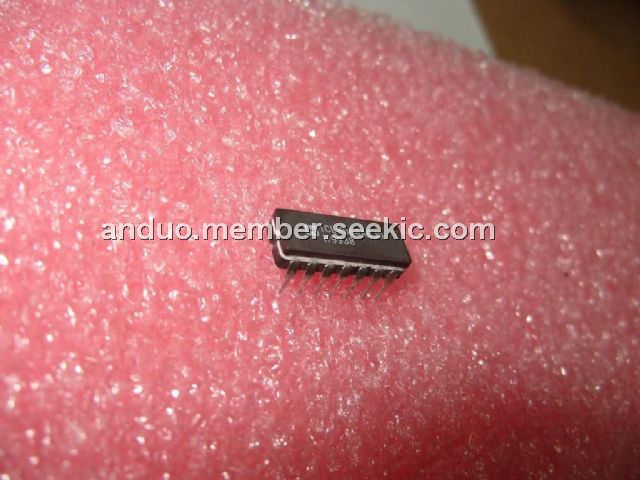

ICL8068ACJD

14/16-bit microprocessor, compatible, 2-chip, A/D converter, DIP, Onboard Clock and Reference,

Rated 5 Rating 5 | reviews | Write a review

Price:: US $16.35~19.95 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $16.35~19.95

PartNumber:: ICL8068ACJD

Brand:: Intersil Corporation - Intersil | Pack: DIP | D/C: 99+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Anna's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-08

From Other Seller

Part Number:ICL8068ACJD
US $16.35 - 19.95
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

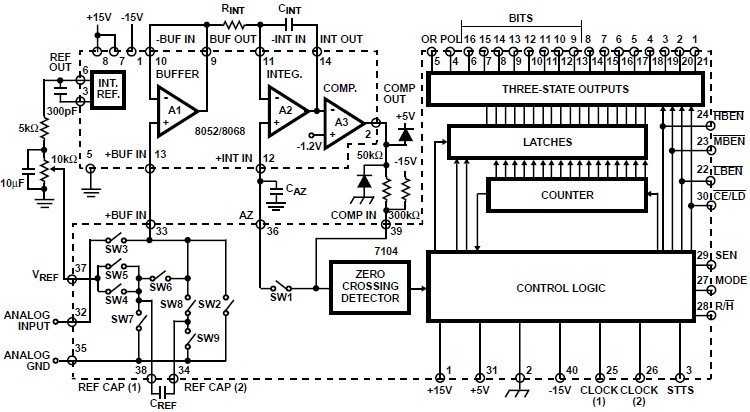

The ICL8068ACJD is a member of Intersil high performance A/D converter family. The ICL8068ACJD performs the analog switching and digital function for a 16-bit binary A/D converter, with full three-state output, UART handshake capability, and other outputs for easy interfacing. The ICL8068ACJD is a 14-bit version. The analog section, as with all Intersil integrating converters, provides fully precise Auto-Zero, Auto-Polarity (including ±0 null indication), single reference operation, very high input impedance, true input integration over a constant period for maximum EMI rejection, fully rationmetric operation, over-range indication, and a medium quality built-in reference. The chip pair also offers optional input buffer gain for high sensitivity applications, a built-in clock oscillator, and output signals for providing an external Auto-Zero capability in preconditioning circuitry, synchronizing external multiplexers, etc.

Parametrics

ICL8068ACJD absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Differential Input Voltage, (8068): ±30V; (3)Input Voltage: ±15V; (4)Output Short Circuit Duration All Outputs: Indefinite.

Features

ICL8068ACJD features: (1)16-Bit/14-Bit Binary Three-State Latched Outputs Plus Polarity and Overrange; (2)Ideally Suited for Interface to UARTs and Microprocessors; (3)Conversion on Demand or Continuously; (4)Guaranteed Zero Reading for 0V Input; (5)True Polarity at Zero Count for Precise Null Detection; (6)Single Reference Voltage for True Ratiometric Operation; (7)Onboard Clock and Reference; (8)Auto-Zero, Auto-Polarity; (9)Accuracy Guaranteed to 1 Count; (10)All Outputs TTL Compatible; (11)±4V Analog Input Range; (12)Status Signal Available for External Sync, A/Z in Preamp, Etc.
