Product Summary

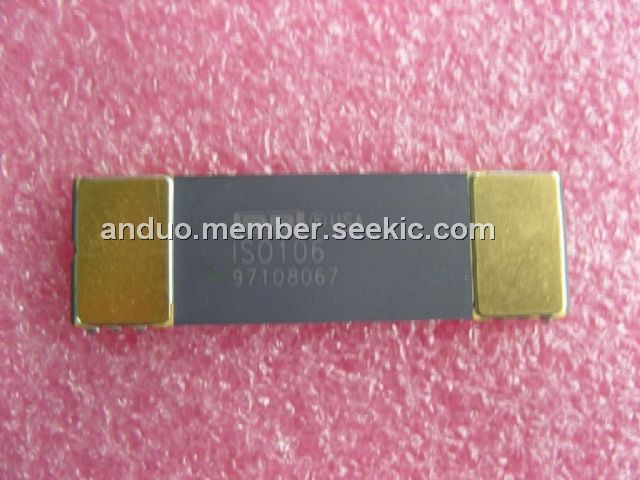

The ISO106 is a signal isolation buffer amplifier. The ISO106 is rated for 3500Vrms in a 40-pin DIP. Both side-brazed DIPs are 600mil wide and have industry standard package dimensions with the exception of missing pins between input and output stages. This permits utilization of automatic insertion techniques in production. The three-chip hybrid with its generous high voltage spacing is easy to use (no external components are required). The typical applications of ISO106 include: (1)industrial process control: Transducer channeisolator for thermocouples, RTDs, pressure bridges, flow meters; (2)4mA TO 20mA loop isolation; (3)motor and scr control; (4)ground loop elimination; (5)biomedical/ analytical measurements; (6)power plant monitoring; (7)data acquisition/test equipment isolation; (8)military equipment.

Parametrics

ISO106 absolute maximum ratings: (1)Supply Without Damage: ±20V; (2)Input Voltage Range: ±50V; (3)Transient Immunity, dV/dt: 100kV/ms; (4)Continuous Isolation Voltage Across Barrier: 3500Vrms; (5)Junction Temperature: +160℃; (6)Storage Temperature Range: –65℃ to +150℃; (7)Lead Temperature (soldering, 10s): +300℃; (8)Amplifier and Reference Output: Short Circuit Duration: Continuous to Common.

Features

ISO106 features: (1)14-Bit linearity; (2)Industry’s first hermetic isolation amplifiers at low cost; (3)Easy-to-use complete circuit; (4)Rugged barrier, HV ceramic capacitors; (5)100% tested for high voltage breakdownISO102: 8000Vpk/10s, 3500Vrms/1min; (6)Ultra high IMR: 125dB min at 60Hz,; (7)ISO106; (8)Wide input range: –10V to +10V; (9)Wide bandwidth: 70kHz; (10)Voltage reference output: 5VDC.

Diagrams

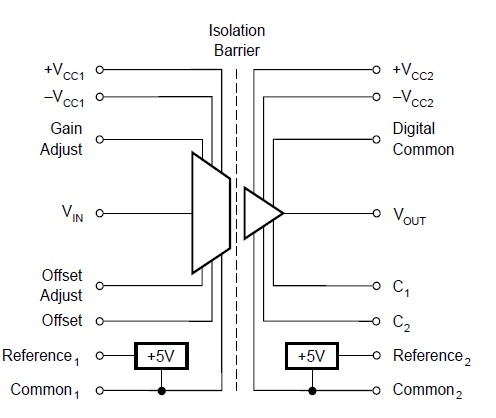

ISO106 circuit diagram
