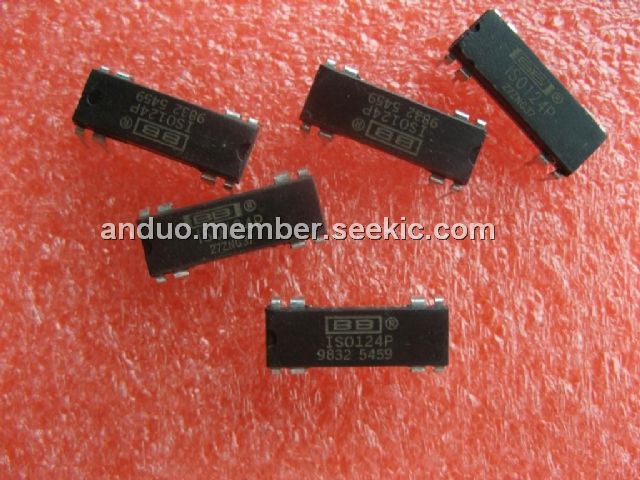

ISO124P

precision isolation amplifier, DIP, ±18V, 5mA, 50kHz, ISO124P, Burr-Brown

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.09~4.08 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.09~4.08

PartNumber:: ISO124P

Brand:: Burr-Brown Corporation - BB | Pack: DIP | D/C: 98+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Anna's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-01

From Other Seller

Part Number:ISO124P
US $3.09 - 4.08
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
DAD1000

US $2.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

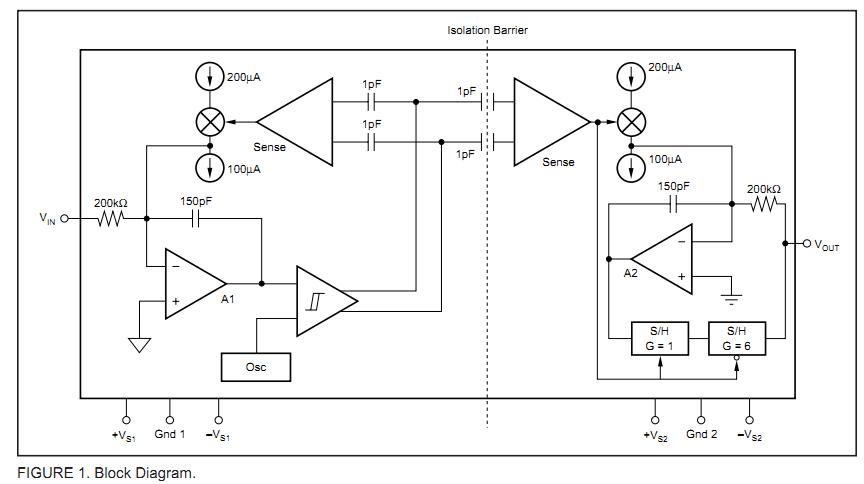

The ISO124P is a precision isolation amplifier incorporating a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2pF differential capacitive barrier. With digital modulation the barrier characteristics do not affect signal integrity, resulting in excellent reliability and good high frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package. The ISO124P is easy to use. No external components are required for operation. The key specifications are 0.010% max nonlinearity, 50kHz signal bandwidth, and 200mV/℃ VOS drift. A power supply range of ±4.5V to ±18V and quiescent currents of ±5.0mA on VS1 and ±5.5mA on VS2 make these amplifiers ideal for a wide range of applications. The ISO124P is available in 16-pin plastic DIP and 28-lead plastic surface mount packages. The applications of the ISO124P include industrial process control: Transducer Isolator, Isolator for Thermo-couples, RTDs, Pressure Bridges, and Flow Meters, 4mA to 20mA Loop Isolation, ground loop elimination, motor and scr control, power monitoring, pc-based data acquisition and test equipment.

Parametrics

ISO124P absolute maximum ratings: (1)Supply Voltage: ±18V; (2)VIN: ±100V; (3)Continuous Isolation Voltage: 1500Vrms; (4)Junction Temperature: +150℃; (5)Storage Temperature: +85℃; (6)Lead Temperature (soldering, 10s): +300℃; (7)Output Short to Common: Continuous.

Features

ISO124P features: (1)100% tested for high-voltage breakdown; (2)rated 1500Vrms; (3)high IMR: 140dB at 60Hz; (4)0.010% max nonlinearity; (5)bipolar operation: VO = ±10V; (6)16-pin plastic DIP and 28-lead SOIC; (7)ease of use: fixed unity gain configuration; (8)±4.5V to ±18V supply range.
