Product Summary

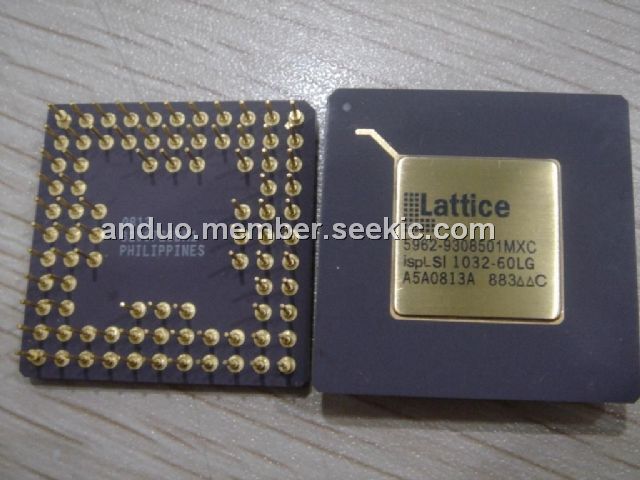

The ISPLSI1032-60LG is a High-Density Programmable Logic Device processed in full compliance to MIL-STD-883. This military grade device contains 192 Registers, 64 Universal I/O pins, eight Dedicated Input pins, four Dedicated Clock Input pins and a Global Routing Pool (GRP). The ISPLSI1032-60LG features 5-Volt in-system programming and in-system diagnostic capabilities. The ISPLSI1032-60LG is the first device which offers non-volatile reprogrammability of the logic, as well as the interconnect to provide truly reconfigurable systems.
Parametrics
ISPLSI1032-60LG absolute maximum ratings: (1)Supply Voltage, Vcc:-0.5 to +7.0V; (2)Input Voltage Applied:-2.5 to VCC +1.0V; (3)Off-State Output Voltage Applied:-2.5 to VCC +1.0V; (4)Storage Temperature:-65 to 150℃; (5)Case Temp. with Power Applied:-55 to 125℃; (6)Max. Junction Temp. (TJ) with Power Applied:150℃.
Features
ISPLSI1032-60LG features:(1)high-density programmable logic; (2)high performance e2cmos technology; (3)in-system programmable; (4)combines ease of use and the fast system speed of plds with the density and flexibility of field programmable gate arrays; (5)ispdesignexpert – logic compiler and complete isp device design systems from hdl synthesis through in-system programming.

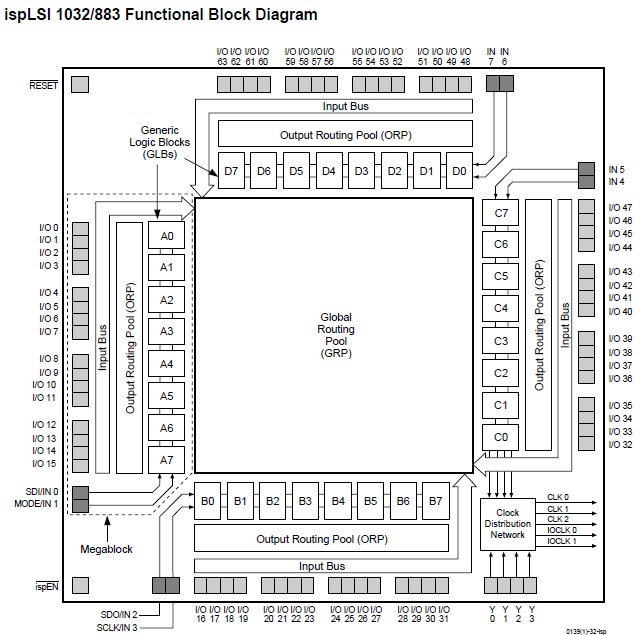

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISPLSI1032-60LG/883 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
