Product Summary

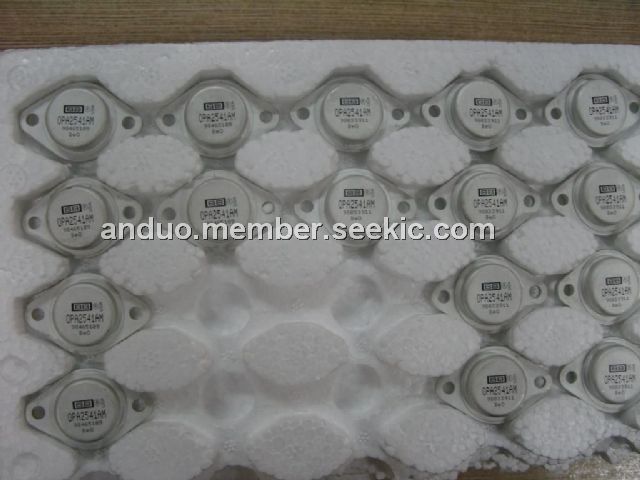

The OPA2541AM is a dual power operational amplifier capable of operation from power supplies up to ±40V and output currents of 5A continuous. With two monolithic power amplifiers in a single package the OPA2541AM provides unequaled functional density. The industry-standard 8-pin TO-3 package is isolated from all internal circuitry allowing it to be mounted directly to a heat sink without insulators which degrade thermal performance. Internal circuitry limits output current to approximately 6A. The applications of the OPA2541AM include: (1)motor driver; (2)servo amplifier; (3)syncro/resolver excitation; (4)voice coil driver; (5)bridge amplifier; (6)programmable power supply; (7)audio amplifier.

Parametrics

OPA2541AM absolute maximum ratings: (1)Supply Voltage, +VS to –VS: 80V; (2)Power Dissipation, Internal: 125W; (3)Input Voltage: Differential: ±VS; Common-mode: ±VS; (4)Temperature: Pin Solder, 10s: +300℃; Junction: +150℃; (5)Temperature Range: Storage: –65℃ to +150℃; Operating (Case): –55℃ to +125℃.

Features

OPA2541AM features: (1)output currents to 5A; (2)power supplies to ±40V; (3)fet input; (4)electrically isolated case.

Diagrams

OPA2541AM block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
OPA2541AM
OPA2541AM

Texas Instruments

Operational Amplifiers - Op Amps HiVltg Hi-Current Op Amp

Data Sheet

0-14: $141.31
14-25: $136.16
OPA2541AM-BI
OPA2541AM-BI

Texas Instruments

IC OPAMP PWR 1.6MHZ DUAL TO-3-8

Data Sheet

Negotiable
