Product Summary

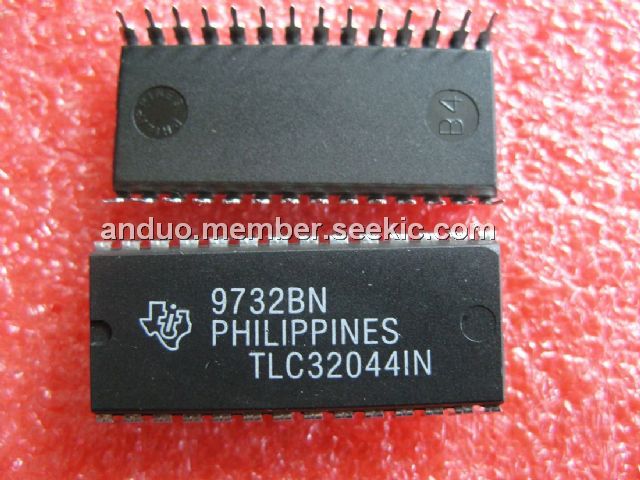

The TLC32044IN is a complete analog-to-digital and digital-to-analog input and output system on single monolithic CMOS chips.
Parametrics
Absolute maximum ratings: (1)Supply voltage range, VCC+: –0.3 V to 15 V; (2)Supply voltage range, VDD: –0.3 V to 15 V; (3)Output voltage range, VO: –0.3 V to 15 V; (4)Input voltage range, VI: –0.3 V to 15 V; (5)Digital ground voltage range: –0.3 V to 15 V; (6)Operating free-air temperature range: 0℃ to 70℃; (7)Storage temperature range: –40℃ to 125℃; (8)Case temperature for 10 seconds: FN or FK package: 260℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: N package: 260℃, J package: 300℃.
Features
Features: (1)14-Bit Dynamic Range ADC and DAC; (2)2’s Complement Format; (3)Variable ADC and DAC Sampling Rate Up to 19,200 Samples per Second; (4)Switched-Capacitor Antialiasing Input Filter and Output-Reconstruction Filter.

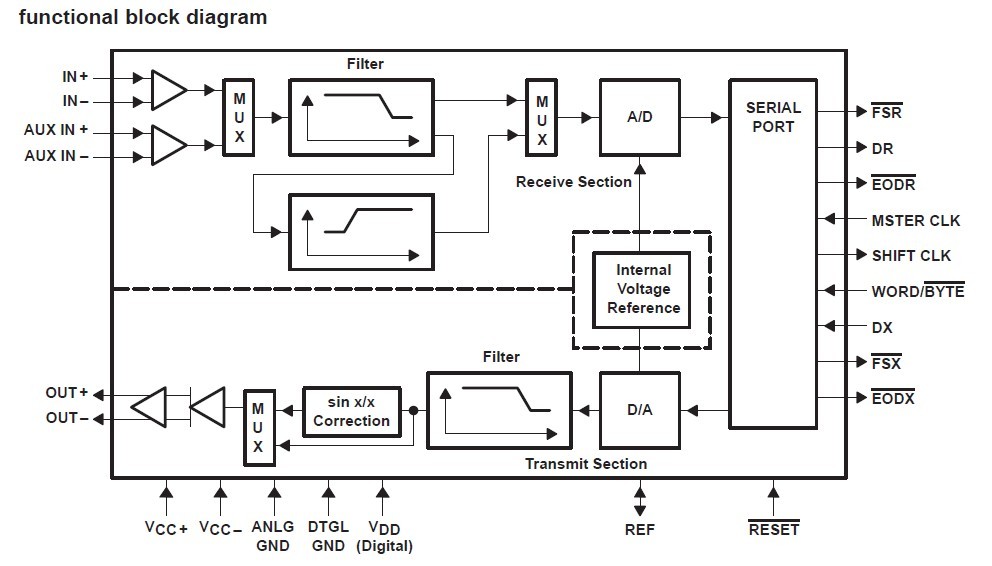

Diagrams
 |
