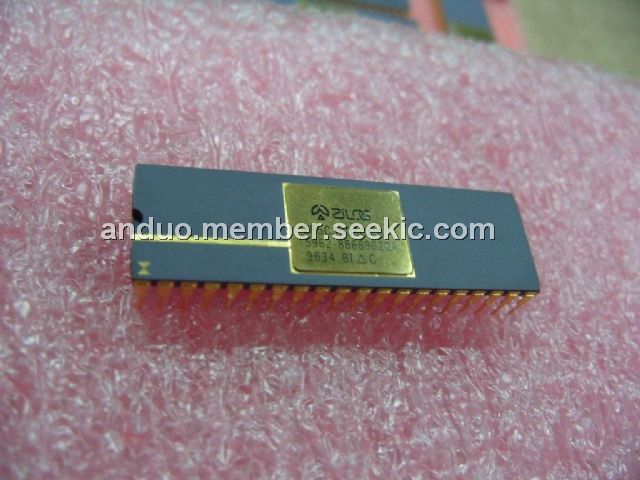

Z85C3008CMB

Product Summary

The Z85C3008CMB is CMOS SCC serial communications controller. It is a cmos version of the industry standard NMOS SCC. The Z85C3008CMB is a dual channel, multi-protocol data communications peripheral that easily interfaces to CPU’s with either multiplexed or non-multipiexed address/data buses. The SCC also contains facilities for modem controls in both channels. In applications where these controls of Z85C3010VEC are not required, the modem controls can be used for general-purpose I/O. The daisy-chain interrupt hierarchy is also supported.

Parametrics

Z85C3008CMB absolute maximum ratings: (1)Vcc Supply Voltage range: –0.3 V to +7.0 V; (2)Voltages on all pins with respect to GND: –3 V to VCC +0.3 V; (3)Storage Temperature: –65℃ to +150℃.

Features

Z85C3008CMB features: (1)Z85C30: optimized for nonmultiplexed bus microprocessors; (2)Pin-compatible to NMOS versions; (3)Two independent 0 to 4.1 Mbps, full-duplex channels, each with separate crystal oscillator, Baud Rate Generator (BRG), and Digital Phase-Locked Loop (DPLL) for clock recovery; (4)features: Multiprotocol operation under program control; programmable for NRZ, NRZI or FM data encoding; (5)Asynchronous Mode with Five to Eight Bits and One, One and One-Half, or Two Stop Bits Per Character, Programmable Clock Factor, Break Detection and Generation; Parity, Overrun, and Framing Error Detection; (6)Synchronous Mode with Internal or External Character Synchronization on One or Two Synchronous Characters and CRC Generation and Checking with CRC-16 or CRC-CCITT Preset to either 1s or 0s; (7)SDLC/HDLC Mode with Comprehensive Frame-Level Control, Automatic Zero Insertion and Deletion, I-Field Residue Handling, Abort Generation and Detection, CRC Generation and Checking, and SDLC Loop; (8)Software Interrupt Acknowledge Feature (not available with NMOS); (9)Local Loopback and Auto Echo Modes; (10)Supports T1 Digital Trunk2; (11)Enhanced DMA Support (not available with NMOS) 10 x 19-Bit Status FIFO 14-Bit Byte Counter; (12)Speeds: Z85C3O: 8.5, 10, 16.384 MHz.

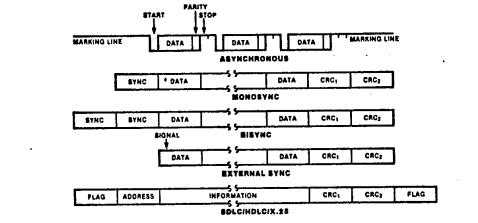

Diagrams
