Product Summary

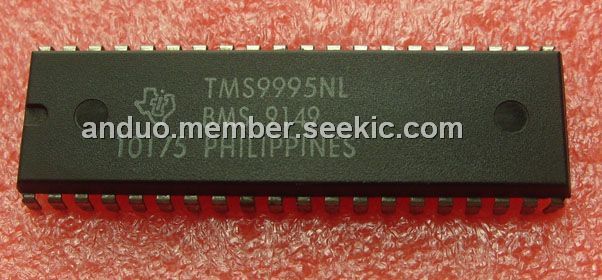

The TMS9995NL is a single-chip 16-bit central processing unit with 256bytes of on-chip random access memory. It is fabricated using N-channel silicon-gate MOS technology.
Parametrics
Absolute maximum ratings: (1)supply voltage:-0.3V to 7V; (2)all input voltages:-0.3V to 20V; (3)output voltage:-0.3V to 7V; (4)continuous power dissipation:1W; (5)operating free-air temperature range:0℃ to 70℃; (6)storage temperature range:-55℃ to +150℃.
Features
Features: (1)16-bit instruction word; (2)memory-to-memory architecture; (3)minicomputer instruction set including signed multiply and divide instructions; (4)multiple 16-word register files residing in memory; (5)256bytes of on-chip RAM; (6)8-bit memory data bus; (7)7 prioritized bardware interrupts; (8)16 software interrupts; (9)programmed and DMA I/O capability; (10)serial I/O via communcation register unit; (11)on-chip time/event counter.

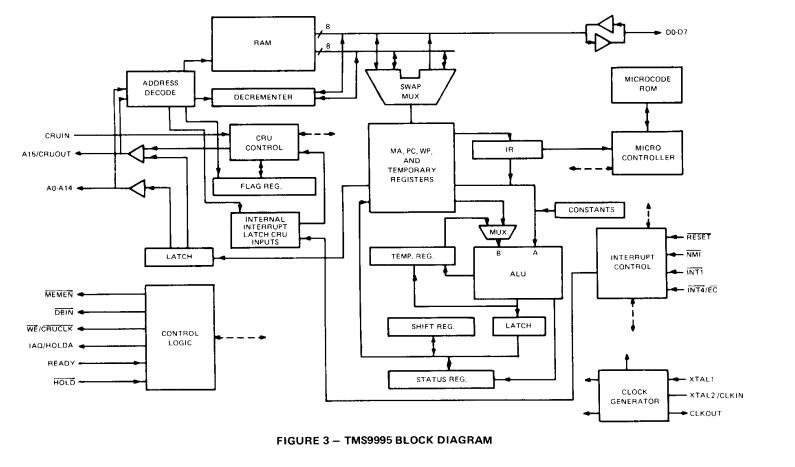

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMS9995NL |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TMS9995NL-12 |
Other |
|
Data Sheet |
Negotiable |
|
||||
